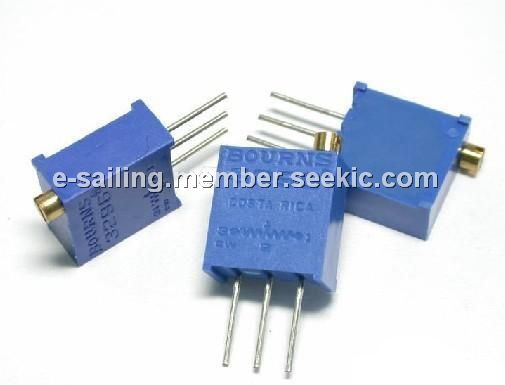

The 3296W-1-205LF is a 3296 - 3/8 " square trimming potentiometer.
Parametrics
Electrical characteristics: (1)Standard Resistance Range: 10 ohms to 2 megohms(see standard resistance table); (2)Resistance Tolerance: ±10 % std.(tighter tolerance available); (3)Absolute Minimum Resistance: 1 % or 2 ohms max.(whichever is greater); (4)Contact Resistance Variation: 1.0 % or 3 ohms max.(whichever is greater); (5)Adjustability Voltage: ±0.01 %; (6)Resistance: ±0.05 %; (7)Resolution: Infinite; (8)Insulation Resistance: 500 vdc.; (9)1,000 megohms min.; (10)Dielectric Strength: Sea Level: 900 vac; 70,000 Feet: 350 vac; (11)Effective Travel: 25 turns nom.
Features
Features: (1)Multiturn / Cermet / Industrial / Sealed; (2)5 terminal styles; (3)Tape and reel packaging available; (4)Chevron seal design; (5)Listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035; (6)Mounting hardware available(H-117P); (7)Lead free version available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3296W-1-205LF |
Bourns |
Trimmer Resistors - Through Hole 3/8" 2Mohms Sealed Vertical Adjust |
Data Sheet |
|
|
||||||||||||
