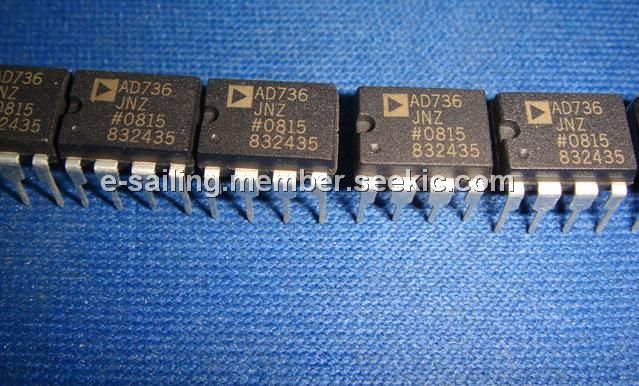

Product Summary

The AD736JNZ is a low power, precision, monolithic true rms-to-dc converter. It is laser trimmed to provide a maximum error of ±0.3 mV ±0.3% of reading with sine-wave inputs.

Parametrics

Absolute maximum ratings: (1)Supply Voltage:±16.5 V; (2)Internal Power Dissipation:200 mW; (3)Input Voltage:±VS; (4)Output Short-Circuit Duration:Indefinite; (5)Differential Input Voltage:+VS and –VS; (6)Storage Temperature Range:–65℃ to +125℃; (7)Operating Temperature Range:0℃ to +70℃; (8)Lead Temperature Range (Soldering 60 sec):+300℃; (9)ESD Rating:500 V.

Features

Features: (1)True RMS Value; (2)Average Rectified Value; (3)Absolute Value; (4)Low Input Bias Current: 25 pA max; (5)High Accuracy: ±0.3 mV ±0.3% of Reading; (6)RMS Conversion with Signal Crest Factors Up to 5; (7)Wide Power Supply Range: +2.8 V, –3.2 V to 616.5 V; (8)Low Power: 200 mA max Supply Current; (9)Buffered Voltage Output; (10)No External Trims Needed for Specified Accuracy.

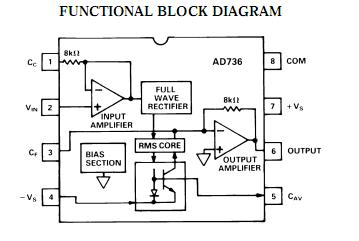

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD736JNZ
AD736JNZ

IC TRUE RMS/DC CONV LP 8-DIP
Data Sheet
0-1: $5.86
1-10: $5.27
10-25: $4.80
25-100: $4.34
100-250: $3.98
250-500: $3.63
500-1000: $3.16
1000-2500: $3.12
