Product Summary
The AD7730BRZ is a complete analog front end for weigh-scale and pressure measurement applications. The device accepts lowlevel signals directly from a transducer and outputs a serial digital word.
Parametrics
Absolute maximum ratings: (1)AVDD to AGND: –0.3 V to +7 V; (2)AVDD to DGND: –0.3 V to +7 V; (3)DVDD to AGND: –0.3 V to +7 V; (4)DVDD to DGND: –0.3 V to +7 V; (5)AGND to DGND: –5 V to +0.3 V; (6)AVDD to DVDD: –2 V to +5 V; (7)Analog Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (8)Reference Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (9)AIN/REF IN Current (Indefinite): 30 mA; (10)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (11)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V; (12)Output Voltage (ACX, ACX, D0, D1) to DGND: –0.3 V to AVDD + 0.3 V; (13)Operating Temperature Range Industrial (B Version): –40℃ to +85℃; (14)Storage Temperature Range: –65℃ to +150℃; (15)Junction Temperature: +150℃.
Features
Features: (1)Resolution of 230,000 Counts (Peak-to-Peak); (2)Offset Drift: 5 nV/℃; (3)Gain Drift: 2 ppm/℃; (4)Line Frequency Rejection: >150 dB; (5)Buffered Differential Inputs; (6)Programmable Filter Cutoffs; (7)Specified for Drift Over Time; (8)Operates with Reference Voltages of 1 V to 5 V.

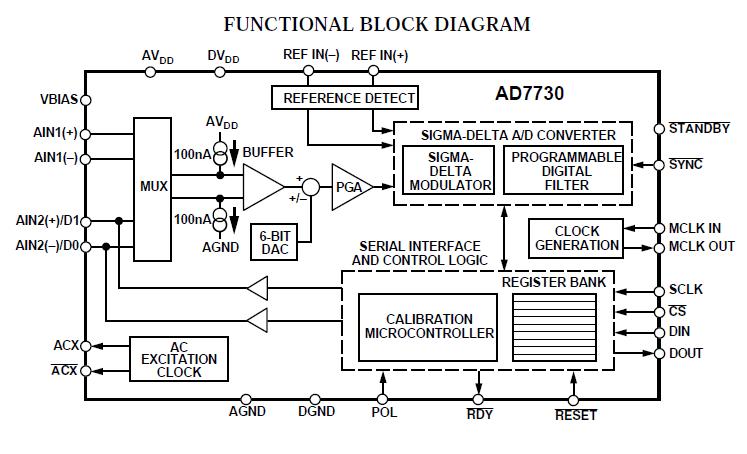

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7730BRZ |
|
IC ADC BRIDGE TRANSDUCER 24-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD7730BRZ-REEL |
|
IC ADC BRDGE TRANSDCR 24SOIC TR |
Data Sheet |
|
|
||||||||||||||||
|
AD7730BRZ-REEL7 |
|
IC ADC BRDGE TRANSDCR 24SOIC |
Data Sheet |
|
|
||||||||||||||||
